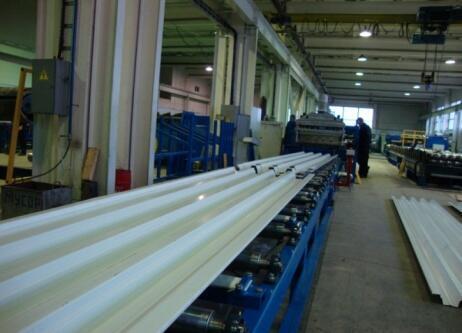

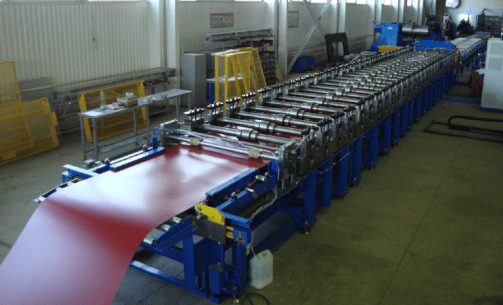

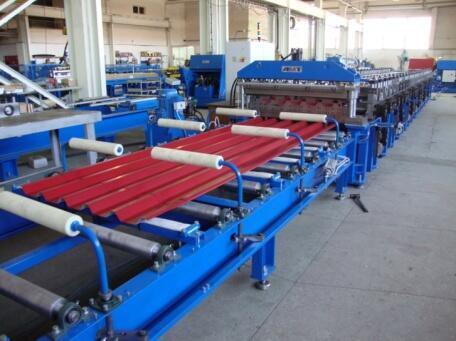

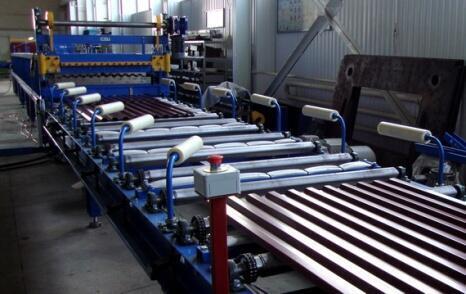

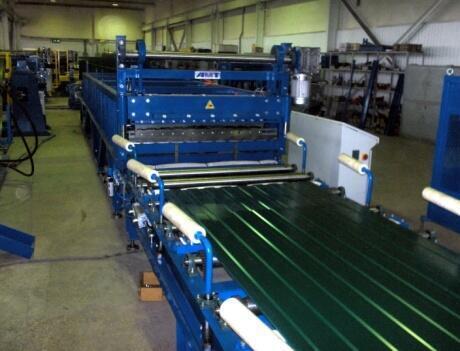

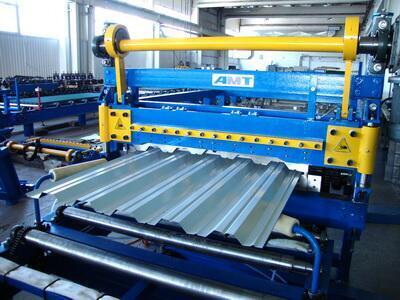

Lines for corrugated profile production (mono)
The design of mono lines for the production of corrugated profile allows to produce only one specific type of profile. The equipment allows for one line to produce products from the raw material of different thicknesses.
| Material thickness, mm | 0,35 - 0,7 |
| Material width, mm | 1250 |
| Coating | zinc, polymer |
| Profile length, mm | 500 - 12 000 |
| Profiling speed, m/min | 40 |
Samples of profiles:
The line consists of:
- decoiler;
- loading trolley;
- lubricating system;
- rollforming mill;
- guillotine shears;
- conveyor stacker.
The equipment may optionally include:
- receiving device;
- conveyor;
- flying scissors;
- packaging machine;
- additional devices for bending, perforation, engraving, etc.
